A Perioral Soft Tissue evaluation after Orthognathic Surgery Using Three-Dimensional Computed Tomography Scan

Rahul Tiwari, P. Srinivas Chakravarthi, Vivekanand S. Kattimani*, Krishna Prasad Lingamaneni
Department of Oral and Maxillofacial Surgery, Sibar Institute of Dental Sciences, Guntur, Andhra Pradesh, India.

Article Metrics

CrossRef Citations:
Total Statistics:

Full-Text HTML Views: 577
Abstract HTML Views: 122
PDF Downloads: 148
ePub Downloads: 45
Total Views/Downloads: 892
Unique Statistics:

Full-Text HTML Views: 319
Abstract HTML Views: 98
PDF Downloads: 111
ePub Downloads: 40
Total Views/Downloads: 568

Creative Commons License
© 2018 Tiwari et al.

open-access license: This is an open access article distributed under the terms of the Creative Commons Attribution 4.0 International Public License (CC-BY 4.0), a copy of which is available at: ( This license permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

* Address correspondence to this author at the Department of Oral and Maxillofacial Surgery, Sibar Institute of Dental Sciences, Guntur, Andhra Pradesh, India, Tel: +9492473628; E-mail:



Facial appearance is an important factor, affects social and psychological well-being. The ideal positioning of jaws and soft tissues is crucial during orthognathic surgery for a better outcome, but the response of facial soft tissues does not always reflect the exact movements of the underlying jaws in 1:1 ratio. So, soft tissue changes following orthognathic surgery require utmost attention during surgical correction to make successful treatment.

Aims and Objectives:

Evaluation of perioral soft tissue changes after orthognathic surgical procedures. The objectives of the study were to assess and compare pre and post-operative perioral soft tissue changes of lip width, nasolabial and mentolabial angle using Three Dimensional Computed Tomography scan (3DCT).

Patient and Methods:

The study involved ten patients for evaluation requiring orthognathic surgical procedures (maxillary or mandibular anteroposterior excess or deficiency, transverse deformities, vertical maxillary excess and facial asymmetry) presented to the department of oral and maxillofacial surgery during 2014-2016. Pre and post-operative 3DCT scan were taken after 12 months using iCT 256 slice whole body CT scanner and evaluated for changes using Dicom PMS D view.


Significant changes were observed in nasolabial angle after maxillary advancement (1.81°) and maxillary setback procedure (2.73°). The mentolabial angle was significantly increased with mandibular setback procedures (3.27°). Mandibular advancement procedures showed both increase (3.6°) and decrease (7.6°) in mentolabial angle.


3DCT showed a significant difference in perioral soft tissue changes in nasolabial and mentolabial angle but no significant change was observed in lip width. 3DCT is a reliable tool for 3D assessment. The conventional thought of changes in Nasolabial angle after surgery is changing due to the underlying factors which should be considered for prediction.

Keywords: Assessment, Esthetic surgery, Perioral tissues, Prediction, 3D Analysis, Three Dimensional Computed Tomography (3DCT).


Orthognathic surgery is the hallmark procedure for the correction of jaw function and esthetics of the face. The response of soft tissues always does not reflect the exact movements of the underlying jaws in 1:1 ratio [1]. Several soft tissue changes will occur following skeletal repositioning of the face which requires attention. The need of each patient will be fulfilled through some form of corrective surgery (single or bi-maxillary surgeries associated with augmentation, reduction and soft tissue surgery like rhinoplasty). The goal of orthognathic surgery is to achieve balanced occlusion and good facial aesthetics [1]. Facial esthetics has become a very important objective of Orthognathic surgery. It is of utmost importance to properly analyze and correctly diagnose the case for best treatment planning to achieve a better prognosis. As we perform the movements of jaws during surgery in 3 dimensional then why to perform the pre-operative work in 2 dimensions. In this context, 3-D imaging is the best way available for treatment planning which gives accurate measurements in anteroposterior, superoinferior and mesiodistal planes. Prediction tracing, mock surgery and post-operative analysis performed in 3 Dimensional software give us a better understanding of the case as it gives the whole positive replica of the jaws. The bony movements performed during these various orthognathic procedures by maxillofacial surgeons contemplate in the facial soft tissue [2]. Analyzing the hard and soft tissues of the face in three dimensions is needed to achieve good post-operative results [3, 4]. Two-dimensional analysis by radiographs and cephalometry have its own limitations for 3D assessment. When the two-dimensional evaluation is performed, it gives the data in only 2 axis but the 3-dimensional study of anything provides us the data in all the 3 planes. Available published literature regarding 3-dimensional analysis and post-operative changes after Orthognathic surgery is available only from the west and very few from Asian countries and same data is scarce in India too [5]. So, this study was planned to assess perioral soft tissue changes after orthognathic surgery using 3DCT scan.

1.1. Aim

The aim of the study was to evaluate and compare changes in lip width, nasolabial and mentolabial angle after the orthognathic surgical procedure using Three-Dimensional Computed Tomography scan (3DCT).

1.2. Patients and Methods

The patients visited for assessment of sleep apnea study with 3DCT volumetric airway assessment requiring orthognathic surgical procedures were randomly involved for assessment of perioral soft tissue changes. Total of 10 (4 males and 6 females) patients with age range of 18 to 26 years willing to participate and consent for use of their data for assessment in the study protocol have been enrolled in the department of oral and maxillofacial surgery during the year 2014-2016. Patients involved in the study are allotted with a lottery method because of the duration of course of study and longer duration of follow up which has restricted us to involve more number of sample size. Even though the sample size is small, the study is giving relevant and important information regarding three-dimensional changes in the series of 10 patients. The study protocol was approved by the Institutional ethics committee on 18/12/2014 (Reg. No. D148502044). Patient and relatives had been explained about the surgical procedure involved with the post-operative protocol. The informed written consent was obtained. The previous results and prediction were based on 2D but in the recent past 3D assessment has started. In this context, the dynamic tissue movement is relevant as shown in the Video no. 1

1.3. Inclusion and Exclusion Criteria for Patient Selection

The patients reported with facial asymmetry, maxillary and mandibular prognathism and retrognathism were included in the study and systemically compromised, drug or alcohol abuse, psychologically ill, current or past radiotherapy and patients who are not willing to enroll in the study for proper follow up were excluded.


2.1. Assessment Procedure: Points to be Measured

2.1.1. Nasolabial Angle

It is the angle constructed between Columella lobular junction (Cl), Subnasale (Sn), and Upper Lip (UL) [6] (Fig. 1A).

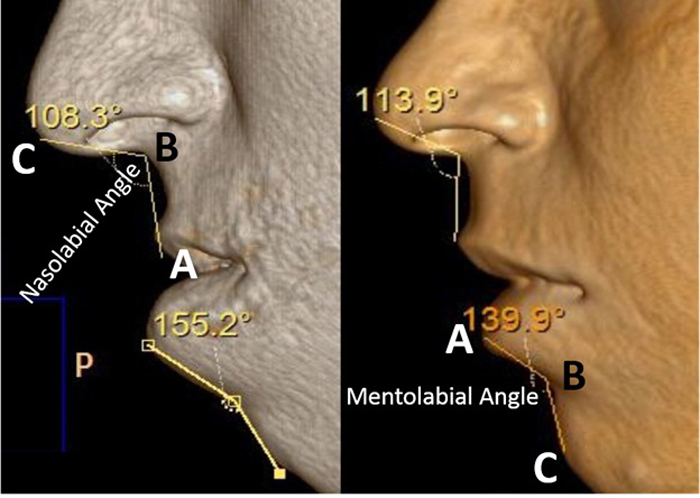

Fig. (1). Pre and post-operative close up profile 3DCT picture showing assessment of nasolabial and mentolabial angle.

  1. UL- Upper Lip- It is the most anterior point of the vermillion border of Cupid’s bow of upper lip [7].
  2. Sn- Subnasale- It is the point at which columella meets with an upper lip in sagittal plane [7]
  3. Cl- Columella lobular junction- the junction between UL and Sn [7].

2.1.2. Mentolabial Angle

Angle constructed among Lower Lip (LL), Soft Tissue B Point (B), and Soft Tissue Pogonion (Pog) [6] (Fig. 1B). LL- Lower Lip

It is the most prominent point of the vermillion border of Cupid’s bow of lower lip [7]. Pog- Soft Tissue Pogonion

It is the most prominent point of the chin [7]. B - Soft Tissue B Point

It is the most concave point of the curve between LL and Pog [7].

2.2. Lip Width

It is the distance between Cheilion of the Right Side (Rt.Ch) and the Cheilion of the Left Side (Lt.Ch) [6] Fig. (2).

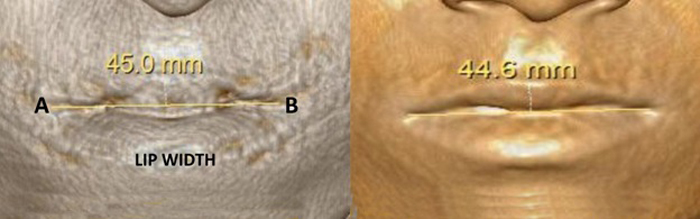

Fig. (2). Pre and post-operative close up frontal 3DCT picture showing assessment of lip width.

Fig. (3). Pre and post-operative profile view of the patient – right side.

2.2.1. Rt.Ch- Right Chelion

It is the most lateral extent of the outline of lip on the right side [7].

2.2.2. Lt.Ch- Left Chelion

It is the most lateral extent of the outline of the lip on left side [7].

Three dimensional computed tomography (3DCT) scan data obtained from the sleep apnea study center as pre and post-operative data for analysis of all involved patients which have been taken one week prior to surgery and post-operatively after one year for sleep apnea assessment. Two angular variables and one linear variable were measured (Figs. 1 & 2). 3D scans were performed with a Phillips Brilliance iCT 256 slice whole-body CT scanner by Gregard Phillips Amsterdam, Netherlands. Each patient required forty seconds of exposure for one scan. Voxel size was set at 0.45 mm for the sagittal, coronal and axial images and each scan contained 555 slices with bony and soft tissue reconstructive images. Each data set was imported directly into Dicom® PMS D view (Figs. 1 & 2). The scans were analyzed and the linear (in millimeters) and angular (in degrees) measurements were done via Dicom software. Frontal view and Profile view of subjects were measured in pre and post-operative 3DCT. Other relevant figures like pre and post-operative patients photographs (Fig. 3), lateral cephalograms (Fig. 4) and three dimensional computed tomography bony window (Fig. 5) are also illustrated.

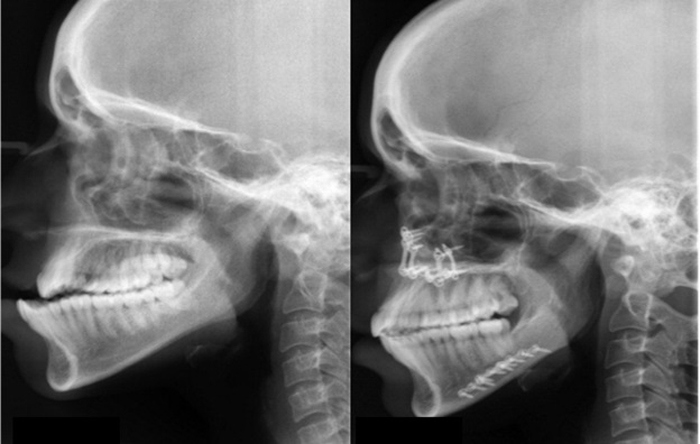

Fig. (4). Pre and post-operative lateral cephalogram of the patient.

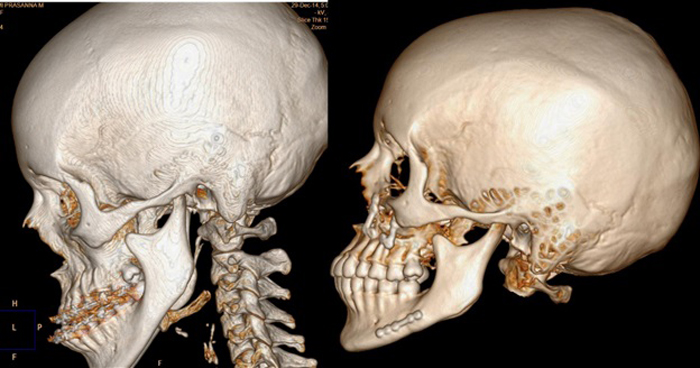

Fig. (5). Pre and post-operative close up profile 3DCT picture showing bony window.
