Antibacterial and Anti-inflammatory Potential of Morus alba Stem Extract
Ichaya Yiemwattana1, *, Niratcha Chaisomboon2, Kusuma Jamdee2
Identifiers and Pagination:Year: 2018
First Page: 265
Last Page: 274
Publisher Id: TODENTJ-12-265
Article History:Received Date: 7/9/2017
Revision Received Date: 05/03/2018
Acceptance Date: 14/3/2018
Electronic publication date: 30/03/2018
Collection year: 2018
open-access license: This is an open access article distributed under the terms of the Creative Commons Attribution 4.0 International Public License (CC-BY 4.0), a copy of which is available at: (https://creativecommons.org/licenses/by/4.0/legalcode). This license permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Periodontitis, a chronic inflammatory disease, is the leading cause of tooth loss in adults. Evidence for the anti inflammatory activity of M. alba Stem Extract (MSE) in periodontal disease is limited.
The study aimed to investigate the inhibitory effect of MSE on the growth of periodontopathic bacteria and expression of interleukin (IL)-6 and IL-8 in Porphyromonas gingivalis Lipopolysaccharide (LPS)-stimulated human Periodontal Ligament (hPDL) fibroblasts.
The antimicrobial activities of MSE were tested against P. gingivalis and Actinobacillus actinomycetemcomitans by the disk diffusion, the minimum inhibitory concentration and the minimal bactericidal concentration methods. Cytotoxicity of P. gingivalis LPS and MSE on hPDL fibroblasts was determined by MTS assay. The expression of cytokines (IL-6 and IL-8) mRNA and proteins in hPDL fibroblasts was measured using the reverse transcription-qPCR and enzyme-linked immunosorbent assay, respectively.
MSE exhibited antibacterial activities against P. gingivalis and A. actinomycetemcomitans with the zones of inhibition of 10.00 ± 0.33 mm and 17.33 ± 0.58 mm, respectively. MIC and MBC values for MSE against P. gingivalis were 62.5 μg/ml. The MIC and MBC values against A. actinomycetemcomitans were 250 μg/mL and 500 μg/ml, respectively. P. gingivalis LPS was shown to mediate the expression of pro-inflammatory cytokines in hPDL fibroblasts. However, treatment with MSE concentrations of 2.5 and 5.0 μg/ml significantly suppressed P. gingivalis LPS-induced IL-6 and IL-8 mRNA and protein expression (p< 0.05).
The present study demonstrates that MSE has antibacterial activity against two putative periodontal pathogens. MSE suppressed IL-6 and IL-8 expression in P. gingivalis LPS-stimulated hPDL fibroblasts, indicating a possible anti-inflammatory effect. Thus, it is a potential adjunctive agent for the treatment of periodontitis.
Periodontitis is characterized by inflammatory destruction of the supporting tissues of the teeth . The etiology of this disease is related to uncontrolled bacterial pathogen-host interactions, resulting in the alteration of resident cells in the periodontium . A few Gram-negative bacterial species have been specifically associated with periodontitis, including Porphyromonas gingivalis and Actinobacillus actinomycetemcomitans . P. gingivalis Lipopolysaccharide (LPS) is one of the key virulent attributes, which is significantly involved in periodontal pathogenesis [4, 5]. P. gingivalis LPS acts as a potent stimulus to a variety of host cells, which subsequently results in the expression of inflammatory cytokines leading to the development and progression of the related host immune response in periodontal diseases .
Human Periodontal Ligament (hPDL) fibroblasts, the primary cultured cell of the ligament, are responsible for the formation, repair and maintenance of the extracellular matrix of the hPDL. These cells are involved in inflammatory and immune processes leading to cytokine (i.e., interleukin (IL)-1 or IL-6) or chemokine (i.e., IL-8) release which could further enhance inflammation [7, 8] and finally leading to periodontal destruction via Matrix Metalloproteinases (MMPs) . IL-6 is a proinflammatory mediator that activates host cells and in turn, leads to bone resorption . IL-8 is a chemokine produced by a variety of tissues and blood cells, and it is a potent inducer of neutrophil chemotaxis following activation in inflammatory regions . P. gingivalis LPS has been shown to stimulate the production of IL-6 and IL-8 by hPDL fibroblasts [12, 13], suggesting that these mediators are involved in the pathogenesis of periodontitis.
Morus alba L., also known as mulberry or Mhon in Thai has been widely cultivated in Thailand, particularly for the leaves to feed silkworms. Its leaves, fruit and bark have long been used in traditional medicine for the treatment of fever, improvement of eyesight, joint strengthening and lowering blood pressure . The amount of oxyresveratrol (trans-2,3`,4,5`-tetrahydroxystilbene), a natural chemical compound found in M. alba extract, in various parts of mulberry tree, is different and the ethanolic extract obtained from stems has the highest amount of this bioactive compound oxyresveratrol compared to the extract obtained from twigs, with the least amount in the leaves . It has been reported that oxyresveratrol from M. alba possesses anti-oxidative and radical scavenging activities. It has also been reported to have anti-inflammatory activity by inhibiting the production of nitric oxide and prostaglandin E2, Inducible Nitric Oxide Synthase (iNOS) expression, and NF-ĸB activity in the LPS-activated RAW 264.7 macrophage cells . In addition, M. alba stem extract can inhibit nitric oxide production via suppression of both the iNOS mRNA and protein. It was also found to inhibit the expression of COX-2 mRNA in LPS-induced RAW 264.7 cells . The other components in MSE such as prenylated flavonoids (i.e. kuwanon E) may have anti-inflammatory activity through the inhibition of NO production . However, the anti-inflammatory activity of MSE in hPDL fibroblasts and antibacterial activity have not yet been determined. Therefore, this study aimed to investigate the inhibitory effect of MSE on the growth of periodontopathic bacteria and expression of IL-6 and IL-8 in P. gingivalis LPS-stimulated hPDL fibroblasts.
2. MATERIALS AND METHODS
2.1. Plant Materials and Preparation of Plant Extract
M. alba stems were obtained from the Queen Sirikit Sericulture Center, Tak Province, Thailand. The fresh stems were chopped and dried. Then, the dried plant was extracted by maceration technique using 80% ethanol for 2 cycles at room temperature. The crude extract was filtered through 0.45µm pore size nylon membrane (VertiClean™, Vertical Chromatography Co., Ltd., Bangkok, Thailand). After filtration, the filtrate was evaporated under reduced pressure using a rotary evaporator (BUCHI Rotavapor R – 114, Switzerland) and continued drying using a water bath (M25 LAUDA, Germany). Then, the dried powder was stored in a tight, light-protected container. The dried crude extract was dissolved in Dimethyl Sulfoxide (DMSO) to give a concentration of 100 mg/ml as a stock solution for the determination of antibacterial activity and anti-inflammatory activity of MSE.
2.2. Bacteria and Culture Conditions
P. gingivalis strain ATCC 33277 and A. actinomycetemcomitans strain ATCC 29523 were obtained from the American Type Culture Collection, Manassas, VA, USA. P. gingivalis was grown anaerobically at 37°C in an anaerobic chamber under an atmosphere of 80% nitrogen: 10% carbon dioxide: 10% hydrogen. Culture media was ATCC medium 2722 supplemented tryptic soy broth/agar. Tryptic Soy Broth (TBS) Blood Agar Plates (BAP) supplemented per liter were made with the addition of 30.0 g of TBS (Becton, Dickinson and Company, Sparks, MD, USA), 5.0 g of yeast extract (BD), 0.5 g of L-cysteine hydrochloride (HiMedia Laboratories Pvt. Ltd, India), and 15.0 g of agar. Vitamin K1 (Sigma Chemical Co., St. Louis, MO, USA) and hemin (Sigma) were added to give the final concentrations of 1.0 μg/ml and 5 μg/ml, then the medium was autoclaved for 15 min at 121°C. The medium was cooled down to 50°C and horse blood was added in the final concentration of 5% (Oxoid Limited, Cheshire, England). The bacteria were inoculated from BAP into 5 ml of TSB and cultured anaerobically for 18 to 24 h at 37°C, then diluted in the TSB and grown overnight to reach early log phase. A. actinomycetemcomitans was grown at 37°C under an atmosphere of 5% carbon dioxide. Culture media was made with 37 g of Brain Heart Infusion (BHI) broth (Becton, Dickinson and Company, Sparks, MD, USA) and 15.0 g of BHI agar. The medium was autoclaved for 15 min at 121°C. Bacteria were inoculated from BHI agar into 5 ml of BHI and cultured for 18 to 24 h at 37°C, 5% CO2 then diluted in BHI and grown overnight to reach an early log phase. Bacterial cells were harvested by low-speed centrifugation (4,000 rpm 5 min), washed, and resuspended in 1 ml Phosphate Buffered Saline (PBS), pH 7.2. The concentration of bacteria was determined with a spectrophotometer at an optical density of 625 nm (OD 0.08-0.1 = 1-2x108cfu/ml).
2.3. Determination of Antibacterial Activity
The antibacterial activity of MSE was evaluated using a disc diffusion method on an agar medium. P. gingivalis was grown an anaerobic TSB blood agar plates in an anaerobic environment at 37°C for 3-5 days. A. actinomycetemcomitans was grown in brain heart infusion agar plate to 5% CO2 at 37°C for 1-2 days. The MSE stock solution was diluted to 12.5-100 mg/ml at a final concentration and introduced onto the disc and allowed to dry. Then, the disc was impregnated onto the seed agar plate. DMSO was used as a negative control, whereas 0.2% chlorhexidine was used as a positive control. The tests were performed in triplicate. The antibacterial activity was determined based on the diameter of the zone of inhibition.
A broth dilution technique was used to determine the antibacterial activity of MSE (Jorgensen and Turnidge, 2007). The Minimum Inhibitory Concentration (MIC) and the Minimum Bactericidal Concentration (MBC) values of MSE were determined. From MSE stock solution, serial two-fold dilutions (15.625-2,000 μg/mL) were prepared with 1 ml volume with TSB for P. gingivalis and 1 ml volume with BHI for A. actinomycetemcomitans. Subsequently, each bacterial strain suspension with a final inoculum of 1x106 bacteria/ml was added to the tubes with different dilutions of MSE. The negative control was prepared using 2% DMSO as was maximum concentration was used to dissolve the extracts in antibacterial experiments. Positive control was prepared using 0.2% chlorhexidine. Solvent and medium controls were used for reference. After 24 h incubation, the bacterial growth was observed for turbidity. MIC was defined as the lowest concentration present in a clear well with no turbidity by visual inspection. The MBC assay was performed continuously after MIC assay. An aliquot of 100 μl from dilution tubes without turbidity was inoculated on TSB blood agar plates for P. gingivalis and inoculated on BHI agar plate for A. actinomycetemcomitans. The plates were then incubated for the appearance of bacterial growth for 3-5 days. The MBC was determined by the lowest concentration of the crude extract that showed no viable growth on the agar plate. The tests were performed in triplicate.
2.4. Preparation and Culture of hPDL Fibroblasts
This study was approved by the Naresuan University Institutional Review Board (COA No. 013/2015). hPDL fibroblasts were harvested from caries-free and periodontally healthy teeth extracted for orthodontic reasons with informed consent. After extraction, the teeth were rinsed with PBS several times. After getting rinsed, the periodontal ligament tissues attached to the medial part of the root were removed using a curette. The tissue explants were plated in 35-mm tissue culture dishes and grown in Dulbecco’s Modified Eagle’s Medium (DMEM: Hyclone, South Logan, UT, USA) with 10% Fetal Bovine Serum (FBS) (Hyclone), 2 mM L-glutamine (Hyclone), 100 U/mL penicillin (Hyclone) and 100 µg/mL streptomycin (Hyclone) at 37ºC, with 5% CO2, and 95% humidity. After reaching confluence, the hPDL fibroblasts were detached with 0.25% Trypsin-EDTA (Hyclone). The cells between the 3rd and 5th passage were used in the following studies. Three independent experiments with cells from 3 different individuals were performed in each experiment.
2.5. Cell Viability Assays
hPDL fibroblasts were seeded into 24-well culture plates at 5 X104 cells per well in DMEM supplemented with 10% FBS for 24h. Then, the medium was replaced with serum-free medium and the cells were treated with various concentrations of MSE or P. gingivalis LPS (InvivoGen, San Diego, CA, USA) in serum-free medium for 24 h. The viability of hPDL fibroblasts towards extracts from M. alba stem was then measured using the Cell Titer 96 aqueous one solution cell proliferation kit following the manufacturer’s instructions (MTS assay; Promega, Madison, WI, USA). MTS working solution was added to each well and incubated for 5 min at 37ºC. After transferring 200 μl of supernatant to a 96-well plate, the soluble formazan absorbance was recorded using a plate reader at 490 nm. All measurements were performed in triplicate and were repeated on three different occasions (n =3). Cytotoxicity was calculated by expressing absorbance values as a percentage of control values (100% represented zero cytotoxicity).
2.6. Quantification of Cytokines mRNA by Reverse Transcription Real-Time PCR
hPDL fibroblasts were seeded in a 6-well plate at a density of 5x105 cells per well. Following 1 h of incubation with 1.25, 2.5, 5.0 μg/ml MSE or 0.05% DMSO, the cells were stimulated with 10 μg/ml P. gingivalis LPS for 23 h. Total RNA was then isolated by Nucleospin RNAII (Macherey-Nagel GmbH&Co. KG) according to the manufacturer’s instruction. Concentration and purity of RNA were determined using a Nano Drop ND-2000c spectrophotometer (Thermo Fisher Scientific, Wilmington, MA, USA). cDNA was synthesized from 1 µg of total RNA and mixed with LightCycler 480 DNA SYBR Green I Master (Roche). Two-step quantitative –reverse transcription PCR was performed in duplicate using the LightCycler 480 II Real-Time PCR System (Roche). The hot start enzyme was activated (95 °C for 5 min), and cDNA was then amplified for 40 cycles consisting of denaturation at 94 °C for 20 s and annealing/extension at 60 °C for 20 s. A melt curve assay was then performed (65 °C for 1 min and then the temperature was increased by 1.1°C every 10 s) to detect the formation of primer-derived trimers and dimers. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as a control. The sequences of the PCR primers were used as follows: IL-6, (forward) 5′-CCTGAACCTTCCAAAGATGGC-3′, and (reverse) 5′-CTGACCAGAAGAAGGAATGCC-3′ ; IL-8, (forward) 5′-CGATGTCAGTGCATAAAGACA-3′, and (reverse) 5′- TGAATTCTCAGCCCTCTTCAAA-3′ ; and GAPDH, (forward) 5′-TGAAGGTCGGAGTCAACGGAT-3′, and (reverse) 5′-TCACACCCATGACGAACATGG-3′ . Data were analyzed with the Light Cycler® 480 software version 1.5. The average starting quantity of fluorescence units was used for the analysis. Quantification was calculated by using GAPDH for internal control.
2.7. Measurement of IL-6 and IL-8 Concentrations by ELISA
After hPDL fibroblasts were stimulated with 10 μg/ml P. gingivalis LPS and treated with MSE for 24 h, the supernatants were collected and the levels of IL-6 and IL-8 protein were measured using the human IL-6 and IL-8 ELISA kits according to the manufacturer’s protocol (BioLegend, San Diego, CA, USA).The optical density of each well at 450 nm was determined using a microplate reader (BIO-RAD Laboratories, Hercules, CA, USA). All measurements were performed in duplicate and repeated at three different occasions. The mean values of the two measurements were used for statistical analysis.
2.8. Statistical Analysis
Statistical analyses were performed using SPSS software version 19.0. All data were expressed as the mean ± Standard Deviation (SD). Differences between the experimental groups were analyzed with the analysis of variance (ANOVA) followed by a post-hoc Tukey test in all experiments. The differences were considered to be significant when p<0.05.
3.1. Growth Inhibition of Periodontopathic Bacteria by MSE
Two putative periodontal pathogens were selected for the antibacterial analysis. As shown in Table 1, the disc diffusion analysis revealed that 50 mg/ml MSE showed antibacterial activity against P. gingivalis and A. actinomycetemcomitans with inhibition zones of 10.00 ± 0.33 mm and 17.33 ± 0.58 mm, respectively. The positive control, 0.2% chlorhexidine, showed an inhibition zone of10.33 ± 0.58 mm and 18.33 ± 0.58 mm against the strains of P. gingivalis and A. actinomycetemcomitans, respectively. Next, MIC and MBC of MSE against these two periodontal pathogens were employed by broth dilution technique to evaluate their antibacterial strength. As reported in Table 2, the MIC indicated bacteriostatic concentration against P. gingivalis and A. actinomycetemcomitans in the average value of 62.5 µg/ml and 250µg/ml, respectively. MSE showed potentially bactericidal activity against P. gingivalis with an MBC of 62.5 µg/ml while an MBC of A. actinomycetemcomitans reached to 500 µg/ml. On the other hand, MIC and MBC values of 0.2% chlorhexidine against both pathogenic bacteria were found to be effective with a concentration of 1.25 µg/ml and 2.5 µg/ml, respectively. The results obtained from three repetitions for each bacterium were similar.
|Periodontal Pathogens||Zone of Inhibition (mm)|
|50 mg/ml MSE||0.2% Chlorhexidine|
|P. gingivalis||10.00 ± 0.33||10.33 ± 0.58|
|A. actinomycetemcomitans||17.33 ± 0.58||18.33 ± 0.58|
|Periodontal Pathogens||MIC (µg/ml)||MBC (µg/ml)|
3.2. Cell Viability of hPDL Fibroblasts Treated With MSE
Initially, we investigated the possible cytotoxic effects of P. gingivalis LPS and MSE by treating hPDL fibroblasts with different concentrations of P. gingivalis LPS or MSE (0, 1.25, 2.5, 5.0, 10.0 and 20.0 µg/ml) for 24 h followed by MTS assay. Dose-dependent adverse effects of P. gingivalis LPS and MSE on the viability of hPDL fibroblast were detected. P. gingivalis LPS tested here showed no effect on hPDL fibroblasts viability (Fig. 1a). MSE at a concentration between 0 and 5.0 µg/ml was not toxic to hPDL fibroblasts as the cell viability was not significantly altered compared to the non-treated control. However, at the concentration of 10 to 20 µg/ml, cell viability significantly decreased indicating that cells died at these concentrations (Fig. 1b).Thus, MSE was used at less than 5.0 μg/ml for following experiments.

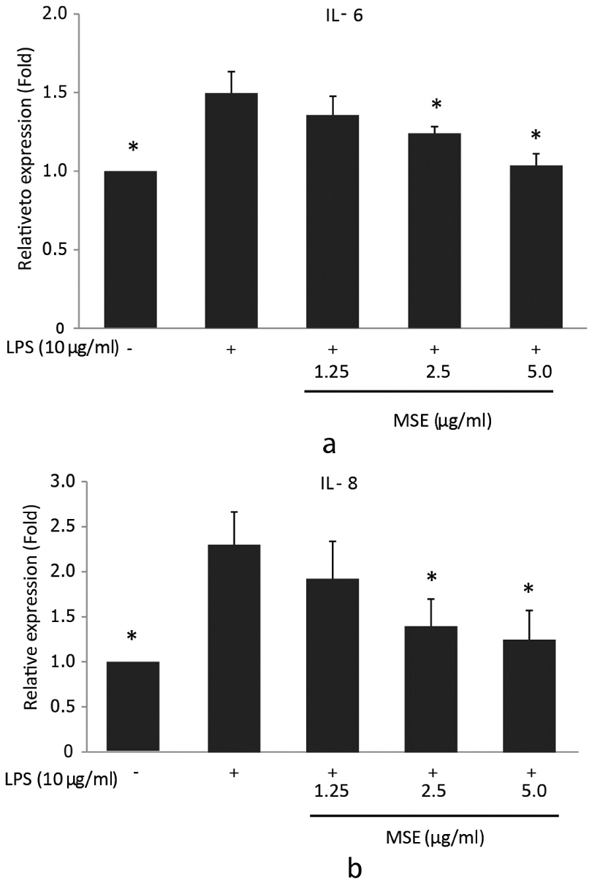

3.3. Inhibition of the LPS-Induced Expressions of IL-6 and IL-8 mRNA by MSE
In order to investigate the inhibitory effect of MSE on P. gingivalis LPS-induced IL-6 and IL-8 mRNA expression, reverse transcription q-PCR was performed. hPDL fibroblasts were treated with MSE for 1 hour prior to stimulation with P. gingivalis-LPS for 23 h. The results showed that MSE inhibited gene expression of IL-6 and IL-8 in a dose dependent manner compared to fibroblasts untreated with MSE. The concentrations 2.5 and 5.0 µg/ ml significantly (p < 0.05) inhibited the expression of both IL-6 (Fig. 2a) and IL-8 (Fig. 2b) mRNA compared to cells treated with P. gingivalis LPS alone. These results suggest that the inhibitory effect of MSE on P. gingivalis LPS-induced IL-6 and IL-8 mRNA expression was regulated at the transcription.

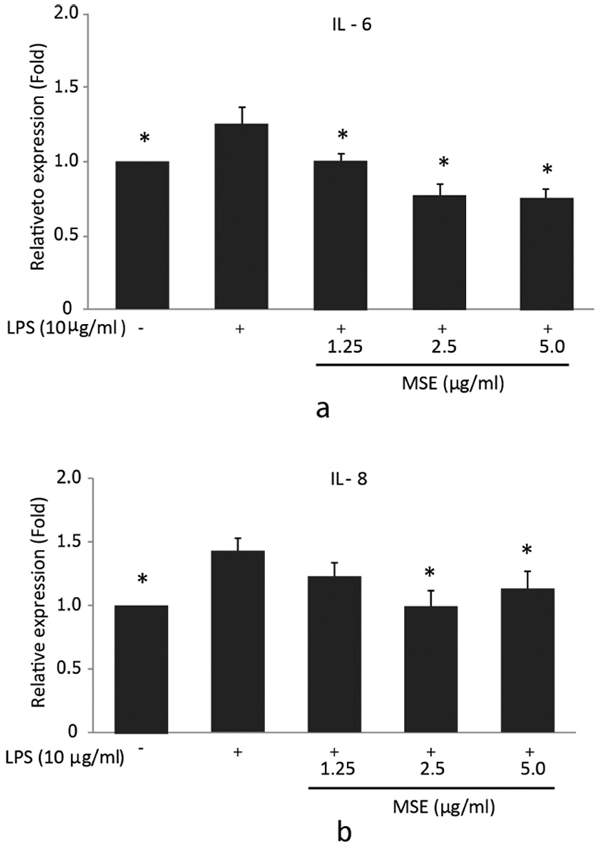

3.4. MSE Inhibits LPS Induced IL-6 and IL-8 Production
To further confirm the inhibitory effect of the MSE on IL-6 and IL-8 secretion by P. gingivalis LPS-stimulated hPDL fibroblasts, ELISA was used to detect the levels of these cytokines in supernatants. For IL-6, the significantly (p < 0.05) lower cytokine concentrations compared to the cells treated with P. gingivalis LPS were detected after incubation with 1.25, 2.5 and 5.0 µg/ml MSE (Fig. 3a). However, IL-8 levels showed a significant decrease in the cells incubated with 2.5 and 5.0 µg/ml MSE compared to the cells treated with P. gingivalis LPS alone (Fig. 3b). MSE suppressed P. gingivalis LPS induced IL-6 and IL-8 production in a concentration-dependent manner. These findings indicated that MSE could also inhibit the expression of pro-inflammatory cytokines IL-6 and IL-8 at the protein levels.
The present study shows for the first time that the addition of MSE inhibited the growth of periodontal pathogens and reduced the expression of pro-inflammatory cytokines by hPDL fibroblasts stimulated by P. gingivalis LPS. M. alba stem extract is one of the important natural sources of oxyresveratrol, which has been reported to possess numerous pharmacological properties, especially its anti-inflammatory , hypoglycemic , antioxidant [18, 19], and anti-microbial activities .
Our results showed that MSE possesses antibacterial activities against two major bacterial causes of periodontitis, P. gingivalis and A. actinomycetemcomitans. However, P. gingivalis showed more sensitivity to MSE than A. actinomycetemcomitans. According to the literature reports, we presume that the main active substance which contributed to the antibacterial and anti-inflammation activities could be oxyresveratrol. A previous report has indicated that oxyresveratrol from Artocarpuslakoocha  and M. alba leaf extract exhibited antibacterial activities against P. gingivalis as well as A. actinomycetemcomitans . P. gingivalis was reported to be the most sensitive organism against M. alba leaf extract with an MIC value of 1.95 mg/ml, while A. actinomycetemcomitans was less sensitive with an MIC value of 3.91 mg/ml . Our results are in accordance with the previous studies reported the inhibitory effect of M. alba extract on these two Gram-negative bacteria with variation in MIC and MBC values. A variation in the sensitivities of these plant extracts may be due to variation in the method of extraction, bioactive compounds as well as bacterial strains used, and variation in chemical constituents. However, the present study only evaluated antibacterial activity against the selected pathogens in planktonic but not in a biofilm state. A complex biofilm composed of multiple species is generally more resistant to antimicrobial agents than planktonic cells . The diversity and metabolic state of microorganisms in a subgingival biofilm play key roles in antibiotic resistance and the inability of the bacterial community to be phagocytized by host inflammatory cells, eventually leads to periodontal disease. Further studies on the potential of MSE to control the growth of periodontal pathogens in biofilm state are necessary to clarify its effects.
IL-6 and IL-8 are important cytokines involved in the immune responses against infection, but overexpression of these cytokines might cause inflammatory diseases, including periodontal diseases . Previous studies have reported that P. gingivalis LPS stimulated the production of pro-inflammatory cytokines secreted from human gingival fibroblasts [23, 24]. In the present study, it was also found that P. gingivalis LPS stimulation increased the expression of IL-6 and IL-8 from hPDL fibroblasts in both mRNA and protein levels. The results showed that MSE extracts inhibited the secretion of IL-6 and IL-8 from P. gingivalis LPS-induced hPDL fibroblasts in a dose-dependent manner. A recent study has reported that MSE demonstrated anti-inflammatory activity through the inhibition of nitric oxide production in LPS-stimulated RAW 264.7 cells . Consistent with the previous studies, the reduced levels of P. gingivalis LPS-induced expression of inflammatory cytokines in the present study indicated that MSE tested here may have potent anti-inflammatory effects. The effective concentration of MSE for anti-inflammatory activity is 2.5 µg/ml. This concentration did not affect the hPDL fibroblasts viability at 24 h, suggesting the primary effect is the suppression of cytokine production rather than cytotoxicity. However, the MIC of the extract against P. gingivalis and A. actinomycetemcomitans was 62.5 µg/mL and 250 µg/mL, respectively. These concentrations induced cytotoxic effects in hPDL fibroblasts in 24 h. Therefore, further investigations of the anti-inflammatory effects of MSE and signaling pathways related to inflammation in hPDL fibroblasts or other oral cells as well as time-kill assays on the periodontopathic bacteria are needed to define the optimal concentration for clinical application.
The present results show that MSE has an anti-bacterial potential against the two putative periodontal pathogens. In addition, MSE can inhibit P. gingivalis LPS-induced production of the pro-inflammatory cytokine, IL-6 and IL-8 expression by hPDL fibroblasts. These findings indicate that MSE may be used as an adjunctive agent for periodontal treatment, but these observations require further experimental verification of the effects.
ETHICS APPROVAL AND CONSENT TO PARTICIPATE
This study was approved by the Naresuan University Institutional Review Board (COA No. 013/2015).
HUMAN AND ANIMAL RIGHTS
No animals were used in this research. All research procedures followed were in accordance with the ethical standards of the committee responsible for human experimentation (institutional and national), and with the Helsinki Declaration of 1975, as revised in 2008.
CONSENT FOR PUBLICATION
Written informed consent was obtained from the patient for publication of this study
CONFLICT OF INTEREST
The authors declare no conflict of interest, financial or otherwise.
The authors thank the Associate Professor Tasana Pitaksuteepong, Department of Pharmaceutical Technology, Faculty of Pharmaceutical Sciences and Center of Excellence for Innovation in Chemistry, Naresuan University, Phitsanulok 65000, Thailand, for kindly providing MSE. This study was supported by Naresuan University Research Grant (R2560C081: fiscal year 2016).
