Abstract

Objective:

The objective of this study was to evaluate in vitro the shear bond strength of two types of MIM (Metal Injection Molding) technology brackets, one with conventional mesh base and the other with rail-shaped mesh base.

Materials and Methods:

Forty human premolars received the bonding of 2 types of brackets: Group 1- 20 Synergy metal brackets (Rocky Mountain) with conventional mesh base and Group 2-20 H4 brackets (OrthoClassic) with rail-shaped mesh base. Both brackets were bonded with Resilience photopolymerizable resin (OrthoTechnology). The specimens were coupled to a Tinius Olsen universal test machine where the shear test was performed using a chisel. In addition, the amount of remaining resin in tooth crown with the ImageJ program was evaluated and the Adhesive Remnant Index (ARI). Intergroup comparison was performed by the independent t test and Chi-square test.

Results:

There was no statistically significant difference between the groups for any of the measures evaluated indicating that the mesh type of the brackets’ base with MIM technology did not influence the shear bond strength of the brackets (shear bond strength, p=0.191; maximum load registered, p=0.244). There was also no difference between the percentage (p=0.602) and area of remaining resin in the teeth (p=0.805) and IRA (p=0.625) between the Synergy and H4 groups.

Conclusion:

Shear bond strength was similar in the two types of brackets with MIM technology evaluated. In addition, the remaining resin in the dental enamel of two types of brackets were also similar.

Keywords: Orthodontic, Bonding, Shear bond strength, Bracket, Conventional mesh base, Rail-shaped mesh base.



1. INTRODUCTION

The process of bonding brackets and orthodontic accessories with resin composites on the dental enamel surface modified practice of specialty throughout the world, increasing practicality of clinical procedures [1]. When the bracket is bonded directly to the enamel, the brackets are loosened accidentally, increasing the time and cost of orthodontic treatment and decreasing the possibility of obtaining the functionality and aesthetics that were outlined in the treatment plan [2]. Debonding of accessories is due to failures in the bonding technique, low retentivity of certain brackets and action of chewing forces [3].

In response to these adhesion problems, brackets with different meshes at their bases were used to obtain the desired adhesive effect, i.e., a strong and durable bonding. Among them, numerous meshes were used coupled to the bracket to give greater stability during the treatment and to provide stability so that the dental movements produced by the bracket have real and effective action [4].

The bases of the brackets have different configurations and designs, in order to impart greater integration of the adhesive system, thus increasing the mechanical retention. The orthodontic bracket must have an adhesive force sufficient to withstand masticatory forces and the activation of the mechanics used [5], the ideal adhesion force between enamel and bracket was previously described to be between 5.9 and 7.8 MPa [6]. Previous studies [6-8] in the literature have reported bond strength values between 2.8 and 10 MPa to achieve sufficient adhesion for the orthodontic movement, minimizing brackets’ debonding [9].

A previous systematic review of literature regarding in-vitro orthodontic shear bond strength testing found that many studies on in-vitro orthodontic bond strength fail to report test conditions that could significantly affect their outcomes [7]. Besides, water storage decreased bond strength on average by 10.7 MPa. Each second of photopolymerization time and each millimeter per minute of greater crosshead speed increased bond strength by 0.077 and 1.3 MPa, respectively [7].

Numerous forms of brackets were designed with their respective meshes to help achieve effective adhesion without neglecting an effective orthodontic technique. It is known that an effective adhesive will give greater stability to the adhered element. Likewise, numerous meshes attached to the base of the bracket were designed to give greater adhesion to the bracket. At first, the mesh was welded at the base of the bracket, showing good adhesion, but several times the mesh did not resist and loosened. In the 1980s, small pieces in a single block were designed that obtained good results with MIM (metal injection molding) technology.

The adhesion strength of the brackets with a laser-structured retention base appears to be significantly larger (twice as much) than single-mesh bond strength [10]. Fleishmann et al. [5], found that, although there were no significant differences between the evaluated brackets, the metallic bracket with laser retentions was the one with the highest mean adhesion force. Few studies have compared the bonding strength of various types of bracket bases.

Despite the use of brackets with MIM technology since its inception, adhesive effectiveness of conventional and rail-shaped mesh base brackets has not been studied. Therefore, the objective of this work was to compare, in vitro, shear bond strength of conventional and rail-shaped mesh base brackets, both developed with MIM technology.

Null-hypothesis tested that there is no difference between shear bond strength of conventional and rail-shaped mesh base brackets of MIM technology.

2. MATERIALS AND METHODS

This in vitro experimental study is based on shear bond strength measurements of brackets bonded to human premolars using a universal testing machine.

The sample size calculation was based on an alpha significance level of 5% (0.05) and a beta of 20% (0.20) to achieve 80% power of the test to detect a minimum difference of 1 MPa with a standard deviation of 1.11 for shear bond strength [11]. Thus, sample size calculation showed a need for a sample of 20 specimens in each group.

Forty human premolar teeth were donated by educational institutions, teeth that were previously extracted due to orthodontic treatment.

Two types of brackets designed with MIM (Metal Injection Molding) technology were compared: One with a conventional mesh base and the other with a rail-shaped mesh base. Randomization was performed in division of the 40 premolars into 2 groups.

GROUP 1- 20 Synergy metal brackets of the Rocky Mountain brand (Synergy®, Rocky Mountain Orthodontics, Denver, CO, USA), with conventional mesh base (Fig. 1).

Fig. (1). Synergy bracket with conventional mesh base.

GROUP 2- 20 OrthoClassic H4 brackets (H4, OrthoClassic Orthodontics, USA), with rail-shaped mesh base (Fig. 2).

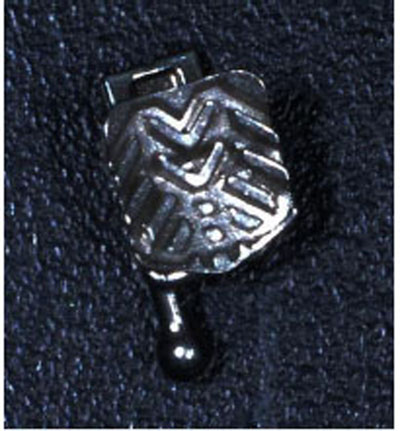

Fig. (2). H4 bracket with rail-shaped mesh base.

40 human premolars were divided into 2 groups, 20 for group 1, Synergy, with conventional mesh base and 20 for H4 group, with rail-shaped mesh base. Teeth were fixed in cubes made with acrylic resin (Fig. 3), submerged till the cervical third of the crown of the tooth.

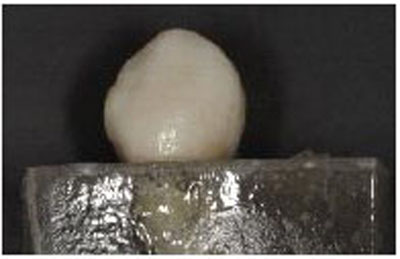

Fig. (3). Premolar fixed in an acrylic resin cube, submerged until the cervical third of the crown.

Prior prophylaxis with a pumice-type paste and a rotating brush was performed on the buccal surface of the crown of premolar, and then the enamel was air-dried and duly isolated. An attack with 37% phosphoric acid for 15 seconds was carried out gently, avoiding the friction in the tooth to prevent damaging enamel structures and reducing the adhesion surface.

Rinse for 15 seconds with a mixture of air and water, because if it is made with water only, acidic monomers can be left that can continue to demineralize enamel. Teeth were dried for five seconds with oil-free air to avoid contamination. The adhesive is then placed with microbrush in small applications without rubbing the tooth to avoid damaging the enamel prisms, and an air jet is directed to prevent a thick layer of adhesive.

Afterwards, a small amount of adhesive resin is placed in the base of each bracket with a metallic instrument and it is positioned on the vestibular face of the crown with slight pressure adjusting the correct positioning of the crown (Fig. 4). The adhesive system used for bonding all brackets was Resilience® Light-Cure Bracket Adhesive (OrthoTechnology, Lutz, FL, USA).

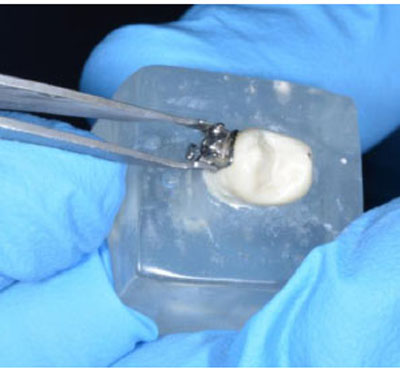

Fig. (4). Bracket bonding in buccal surface of the crown with slight pressure.

The resin is then photopolymerized by a 1800mw/cm lamp for 10 seconds per mesial and 10 seconds per distal, giving a total of 20 seconds, as specified by the manufacturer of the adhesive system used.

The specimens were then coupled to a universal testing machine (Tinius Olsen Testing Machine, Model Super L-120, calibration certificate LabMetro, 2015) so that the shear strength of each bracket was tested with chisel (Fig. 5). The pressure exerted during the shear and even the release of the bracket was measured. The shear bond strength was measured in Megapascals (MPa) and the maximum load recorded was measured in Newtons (N).

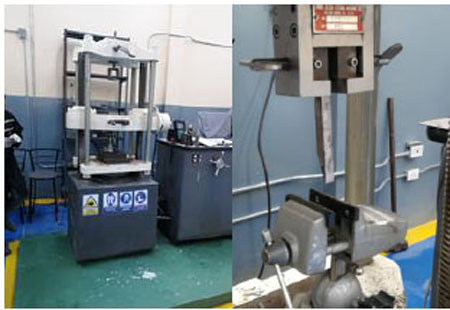

Fig. (5). Universal testing machine and appearance of the chisel used for shearing of the brackets.

In addition to the shear bond strength, the percentage of resin that remained adhered to the tooth after the experiment was evaluated, resulting in a value of the mesh type adhesiveness.

The evaluation was performed with the ImageJ program (version 1.51), which was developed by the Research Services Branch (RSB) of the National Institute of Mental Health (NIMH), part of the National Institutes of Health (NIH).

The measurement was made as follows: The surface area of each tooth was calculated, as well as the surface area of the remaining resin in the dental tissue, in pixels, dividing the two surfaces and multiplying by 100 results in the percentage of resin remaining (%), which identifies the adhesion or lack of adhesion of different meshes (Fig. 6). The percentage is relative to the total area of the labial surface of the enamel, and is not related with the amount of resin placed and left on the tooth.

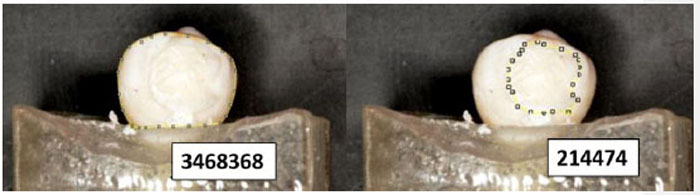

Fig. (6). Measurement of the total enamel surface area and the surface area of the remaining resin, in pixels, performed in the ImageJ program.

Besides, the Adhesive Remnant Index (ARI) as described by Artun and Bergland [12] was also evaluated in each tooth, indicating the amount of adhesive left on the tooth after debonding. The scores vary from 0 to 3:

Score 0 – No adhesive left on tooth

Score 1 – Less than half of the adhesive left

Score 2 – More than half left

Score 3 – All adhesive left on tooth with distinct impression of bracket mesh

2.1.. Statistical Analysis

The intra-examiner agreement was performed for the measurement of the area of remaining resin and the ARI. The ICCs were reported as 0.91 and 0.95 respectively, indicating excellent agreement.

Normality of the data was verified by the Shapiro-Wilk test, and since the data presented a normal distribution, parametric tests were used.

The comparison of the two groups of the shear bond strength measurements, the maximum registered load and the percentage and area of remaining resin were performed by the independent t test.

The ARI was compared between the groups with a Chi-square test.

Statistical tests were performed with Statistica for Windows version 7.0 (Statsoft, Tulsa, Oklahoma, USA) and the significance level was set at 5% (P<0.05).

3. RESULTS

Table 1 shows the comparison between the groups of shear bond strength measurements (measured in Megapascals, MPa) and maximum load registered (measured in Newtons, N). There was no statistically significant difference between the groups for any of the measures evaluated (shear bond strength, p=0.191; maximum load registered, p=0.244), indicating that the mesh type of the brackets base with MIM technology did not influence the adhesive strength of the brackets.

Table 1. Results of intergroup comparison of shear bond strength and maximum load registered.
Variables GROUP 1
SYNERGY
CONVENTIONAL MESH
N=20
GROUP 2
H4
RAIL-SHAPED MESH
N=20
P
Mean S.D. Mean S.D.
Shear bond strength (MPa) 9.58 5.80 11.83 6.24 0.191 t
Maximum load registered (N) 107.54 65.10 136.37 71.91 0.244 t
t – Independent t Test
S.D. – Standard Deviation
P – Statistical Significance (P<0.05)
MPa – MegaPascals
N - Newtons

Table 2 shows the comparison of the percentage and the area of remaining resin in the teeth between the two groups evaluated. There was no difference between the percentage (p=0.602) and area of remaining resin (p=0.805) in the teeth between the Synergy and H4 groups (Table 2). The percentage of resin remaining in the tooth is relative to the total area of the labial surface of the enamel, and not related to amount of resin placed and left on the tooth, so low percentages of resin remain (Table 2).

Table 2. Results of intergroup comparison of the percentage of remaining resin.
Variables GROUP 1
SYNERGY
CONVENTIONAL MESH
N=20
GROUP 2
H4
RAIL-SHAPED MESH
N=20
P
Mean S.D. Mean S.D.
Percentage of remaining resin (%) 21.20 10.98 19.08 9.57 0.602 t
Area of remaining resin (pixels) 64633.60 34229.04 61583.25 28160.46 0.805 t
t – Independent t Test
S.D. – Standard Deviation
P – Statistical Significance (P<0.05)
% - Percentage

Table 3 demonstrates the comparison of the IRA scores between the groups. There was no difference in the IRA between the Synergy and H4 groups (p=0.625, Table 3).

Table 3. Results of intergroup comparison of the ARI.
ARI Score
Group
0 1 2 3 Total
SYNERGY
CONVENTIONAL MESH
0 4 8 8 20
H4
RAIL-SHAPED MESH
1 6 7 6 20
Total 1 10 15 14 40
X2= 1.75DF = 3P = 0.625
X2Chi-square Test Value
DF – Degree of Freedom
P – Statistical Significance (P<0.05)

4. DISCUSSION

The results of the present study indicate that the shear bond strength was similar in the two types of MIM technology brackets evaluated (Table 1). Besides, the adhesive remnant in the tooth enamel also did not present a statistically significant difference between the groups (Tables 2 and 3).

The methodology of the present study obeyed standardization, the specimens tested were well adapted to the test machine used and allowed the work to be performed. Angulations and torques of the brackets were eliminated during bonding; the pressure was standardized during bracket positioning and bonding, so that the adhesive line had a thin and uniform thickness. In addition, adhesive excesses were removed without displacement of the bracket. For more legitimate comparisons between products, orthodontic adhesion strength tests should have a universal standardization [5, 13].

The average force transmitted to the bracket during chewing is around 40 to 120 N, so it is desirable that a bracket has a tooth enamel adhesion strength greater than 120N [14]. Reynolds [6] previously described that the ideal adhesion force between the enamel and the bracket is between 5.9 and 7.8 MPa.

Wang et al. [15], performed a laboratory study and their mean strengths of adhesion ranged from 4.32 to 9.32 MPa in tests performed on human teeth and six different bracket bases evaluated. Fleishman et al. [5], found a variation of the adhesion strength means between 3.81 MPa (Edgewise Standard - Morelli) and 10.12 MPa (Discovery - Dentaurum). Fernandez et al. [11], found forces varying from 4.32 to 7.65 MPa, in mesh and rail-shaped base brackets, bonded with conventional or self-etching adhesive.

In the present study, the mean adhesion strengths were 9.58 MPa for the conventional mesh Synergy bracket and 11.83 MPa for the rail-shaped mesh H4 bracket (Table 1). These values are close to the higher values of the studies mentioned above [5, 15], indicating great adhesion of the two brackets evaluated to the dental enamel.

There was no statistically significant difference between the groups for shear strength, indicating that the mesh type of the bases of the brackets with MIM technology did not influence the adhesive strength of the same (Table 1).

The present study corroborates the results of the previous study by Fleishman et al. [5], who investigated the influence of various types of bracket base designs on the adhesion strength and there was no statistical difference between the brackets tested. The shear test included Discovery (Dentaurum) - metallic with laser grooves; Monobloc (Morelli) – metallic one-piece with raised bumps; Edgewise Standard (Ortho Organizers) – metallic with MIM (Metal Injection Molding); Illusion Plus (Ortho Organizers) – ceramic with retention ridges; Composite (Morelli) – polycarbonate with raised bumps for mechanical retention; and Edgewise Standard (Morelli) – metallic with single mesh. Although there were no significant differences between the evaluated brackets, the metallic Discovery bracket with laser retentions was the one with the highest mean adhesion force [5]. The Bracket Discovery presented higher adhesion strength in the study of Sorel et al. [10], comparing this bracket, which has laser retention, with a conventional mesh bracket.

Our results differ from the findings of Fernandez et al. [11], that found that mesh bracket bonded with self-etching primer presented greater adhesion than the rail-shaped base bracket bonded with conventional adhesive resin. Probably the greatest difference of the study of Fernandez et al. [11], are in the different types of resin used and not in the types of bracket bases tests; in addition, the type of resin used was different from that used in the present study, which may justify the differences, and numerically, our values of shear bond strength were higher than that of Fernandez et al. [11].

Wang et al. [15], evaluated different brackets with different bases, with single and double meshes of different sizes, and found that, among mesh brackets, Dentaurum, with larger mesh size, produced higher bond strength than brackets with smaller meshes. The two brackets studied in the present study had different meshes, and the bracket with grooved mesh had a larger mesh size; however, we found no difference in shear bond strength between the larger and smaller meshes.

The results of the evaluation of the amount of resin remaining in the dental enamel showed a percentage of 21.20% in the Synergy bracket and 19.08 in the H4 bracket, it showed that there was no significant difference in the percentage and the area of resin remaining in the teeth between the groups Synergy and H4 (Table 2). Park et al. [16], also found no differences in the adhesive remaining index evaluating 3 types of brackets.

In the present study, the area and percentage of remaining resin and the Adhesive Remnant Index (ARI) were used as described by Artun and Bergland [12]. This ARI classification evaluates the amount of resin adhered to the tooth, after removal of the bracket, and suggests several degrees of susceptibility to enamel fracture. The ideal is to achieve high scores on the ARI (greater amount of material adhered to the tooth) to maintain the integrity of the enamel [17].

In the present study, most teeth showed ARI scores of 3 and 4, by the ARI [12], for both groups studied (Table 3). In the study by Fleishmann et al. [5], for the bracket with MIM technology, half showed score 3, and the other half, scores 2 and 3, similar to the results of our study.

The presence of resin remnant in the tooth is dangerous, as there is a greater chance of cohesive fractures occurring in the enamel, since it indicates that the predominant fracture interface was adhesive/enamel [5]. The most favorable fracture interface for safe removal is the bracket/adhesive, with retention of the adhesive material on the enamel surface, as this demonstrates that the cohesive strength of the enamel was superior than the adhesion strength of the base of bracket to the adhesive [5]. This way, the occurrence of enamel fractures becomes practically non-existent, and removal of the residual adhesive is carried out with the aid of special burs, which do not damage dental tissue.

The removal of resinous adhesive after brackets’ debonding is still an issue of interest. The amount of remnant adhesive left on the enamel can be controlled by altering the adhesive-bracket interface characteristics to enhance the interface strength by varying the filler content and bracket base retentive characteristics [18].

Therefore, for adhesion of orthodontic accessories to dental enamel, the most important is the strength of the resin and its bonding properties and adhesion to the enamel. The mesh bases evaluated are important, but do not overlap the importance of shear bond strength of the resinous adhesive material.

It seems that the type of the mesh in the bracket base did not influence the shear bond strength of the brackets to the dental enamel. It seems that the force of adhesion is related to other factors such as the type of adhesive material used [11, 19], the curvature and size of the bracket base [16, 20], the quality of the dental enamel, among other factors.

CONCLUSION

The null-hypothesis tested was accepted. The shear bond strength was similar in the two types of MIM technology brackets evaluated. In addition, the remaining resin in the dental enamel of the two types of brackets was also similar.
